Index of Olamef Machines and other Products

Axial | Radial | Transistors | ICs | Accessories | Special machines & Feeders | Economy Line
 TP/Fast | Counters | Scales
 | Depanelers | Sep4 | PLCC Extractors | Cut & Form Hand Tools | Clearance  | Parts Lists



TP6  -  Cut & Bend

TP6/PR-B  -  Cut, Bend & mechanically Form
Lead Diameters 1 - 1.3mm  (.039 - .051") ONLY






TP6/PR-F  - Cut, Bend & Form with dies



TP6/V  -  Cut and Vertical Bend



TP6/V-PR  -  Cut, Vertical Bend & Lock-in
form with dies




TP6/S - Cut and Bend for SMD

Component Forming Hand Tools

For other Hand Tool options click here
Piergiacomi hand tools, excelta
TP6/R  -  Cut only
TP/R-PR  -  Cut & Form with dies
  • Machines for Radial Loose Components                                                                                top

TP/LN-100  -  Cut only
TP/LN-500  -  Cut only
TP/SC4  -  Cut & Form with dies
TP/TS1  -  Cut & Form with dies
TP/TC4  -  Cut only
  • Machines for Transistors                                                                                                 top

TP/TO-CF  -  Cut & Form Transistors
in Tube with dies




TP/TS1  -  Cut & Form with dies


  • IC Forming Machines & Tools                                                                                          top

TP/IC-F  -  Straighten ICs


Adjustable Pin Straighteners
  • Accessories                                                                                                                      top

Motors

  Mot-98  -  Mot-98/A  -  Mot-IC-F
Loose Feeders

  CS10  -  CS20  -  CS30  -  CS40
Reel Holders

    BR3  -  BR6  -  BR1
Others     TNS/11  -  TNS/13  -  Pedal for Motor
  • Machines for Special Applications                                                                                   top

SP22  Pneumatic Feeder for taped axial components


SP23  Pneumatic Feeder for taped radial components


SP21  Pneumatic Feeder for taped axial components vertical form



TP6/EC - Axial Cut & Bend


TP6/V-EC - Axial Cut & Vertical Bend


TP6/R-EC - Radial Cut
  • Forming Handtool                                                                                                   top

Axial, Radial and TO Forming Hand Tools

Hand Tool options click here



 Piergiacomi hand tools, excelta
  • Connector Cutting Machine (Faston)                                                                               top


TP/Fast machine
Metal Connector/Fastor cutting machine




  • Component Counters                                                                                                       top

County Component Counters for
Axial, Radial & SMD

County-S Motorized SMD Component Counter

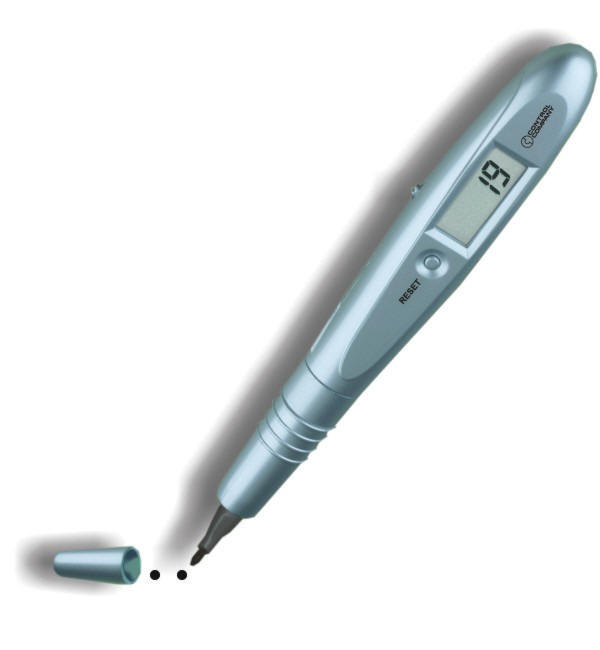

Counter-Pen
  • Scales                                                                                                                              top

Counting Scales


  • Pin Header Cutting Machine                                                                                            top

SEP4 Motorized Pin Header Cutting Machine


  • PLCC Extractors                                                                                                               top

PLCC Universal & Dedicated Extractors


  • CAB & Olamef PCB Depanelers                                                                                        top


SEP3 Pneumatic PCB Separator
with removable safety cover

106.0000


Uses the same blades as the Hektor 2


   SEP3 con Cubierta de Seguridad
Hektor 2 Off Cut Remover
8932145

Uses the same blades as the SEP3

HEKTOR 2

Maestro 2 & 2M PCB Separators
Maestro 2   8933900
Maestro 2M
   8933935


   MAESTRO 2

Model shown is Motorized                                                    top



SEP1 OLAMEF PCB Separator
Manual PCB Separator with 2 circular blades


Available with Standard or Titanium Coated blades

100.0000 SEP1
100.0000TI SEP1-TI
  Olamef SEP1 SEP1 with standard blades



 The SEP1 is available also with      titanium coated blades (TI).





SEP1M OLAMEF PCB Separator
Motorized PCB Separator with 2 circular blades


Available with Standard or Titanium Coated blades
100.0001 SEP1M  110V
100.0001TI SEP1M-TI  110V
100.0002 SEP1M  220V
100.0002TI SEP1M-TI  220V
  Olamef SEP1M, 100.0001 SEP1M with standard blades



The SEP1M is available also with titanium coated blades (TI).

                                                  top



SEP2 OLAMEF PCB Separator
Manual PCB Separator with 1 circular and one linear blade


Available with Standard or Titanium Coated blades

Versión estándar es de 450mm de largo.

También disponibles:
-  Largo de 600mm
-  Altura de 70mm

103.0000 SEP2 450mm (17.71")
103.0000TI SEP2-TI 450mm (17.71")
103.1000TI SEP2-TI/70 450mm/70mm
(17.71")/(2.75")
104.0000TI SEP2-TI/600 600mm (23.62")




Olamef SEP2, 1030000   SEP2 with standard blades


The SEP2 is available also with titanium coated blades (TI).



SEP2M OLAMEF PCB Separator
Motorized PCB Separator with 1 circular and 1 linear blade


Available with Standard or Titanium Coated blades

Versión estándar es de 450mm de largo.

También disponibles:
-  Altura de 70mm
-  Largo de 600mm con altura de 70mm


103.0001 SEP2M    110V 450mm
103.0001TI SEP2M-TI  110V 450mm
103.0002 SEP2M    220V 450mm
103.0002TI SEP2M-TI  220V 450mm

104.0001TI SEP2M-TI/600   110V 600mm
104.0002TI SEP2M-TI/600   220V 600mm

103.1001TI SEP2M-TI/70   110V 450mm/70
103.1002TI SEP2M-TI/70   220V 450mm/70

Olamef SEP2M, 1030001, 103.0002  SEP2M with standard blades

The SEP2M is available also with titanium coated blades (TI).

                                                                                                    top


  Olamef SEP2MTI, 1030001TI, 103.0002TI SEP2M with titanium coated blades




Maestro 3 PCB Separators
Manual PCB depaneler with 1 circular blade and one
linear blade


8933945 with titanium coated blades


   MAESTRO 3E  8933945,  8931220

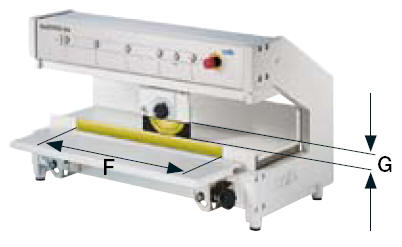

Maestro 4S PCB Separators
Motorized PCB depaneler with 1 circular and
1 linear blade

8936800  MAESTRO 4S/450
8936745 MAESTRO 4S/600
8931240 CONVEYOR BELT/450
8932150 CONVEYOR BELT/600






  Maestro 4S/450  8936800                                          top


Maestro 5 PCB Separators
Maestro 5L

     MAESTRO 5M  8931300,  8934520

Manual & Pneumatic Depaneling Handtools


  • Cutting and Forming Hand Tools                                                                                                                      top

PART
NUMBER
TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  PNR 30 145 3 1.02 18   C shape forming tool
  PNG 5000 150 3 1.02 18   C shape forming tool
  PNR 5000 150 3 1.02 18   Cutting and C shape forming tool
  PNR 5010 150 3 1.02 18   Tool to cut and form in a double opposite C shape in one operation
  PTR 30C 150 3 1.02 18   C shape forming tool which cuts the residual part at 3mm
  PTR 30C/5 150 3 1.02 18   C shape forming tool which cuts the residual part at 4mm
PART NUMBER TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  PTR 30 L 150 3 1.02 18   Cutting and L shape forming tool
PART NUMBER TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  PPR 5000 150 3 0.6 - 0.8 22 - 20   U shape forming tool
  PPR 5001 150 3 0.6 - 0.8 22 - 20   U shape forming tool
  PPR 5002 150 3 0.6 - 0.8 22 - 20   U shape forming tool
  PPR 5003 150 3 0.6 - 0.8 22 - 20   U shape forming tool
PART NUMBER TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  PN 5040 150 3 1.30 16   90° forming tool
  PN 5040/5 150 3 1.30 16   90° forming tool
  PN 5040/90 150 3 1.30 16   Cut & 90° forming tool
PART
NUMBER
TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  PN 5050 155 3 1.30 16   Tool to form the central lead of TO220, 3.81mm pitch
  PN 5050/3 158 3 1.30 16   Tool to form the central lead of TO247 & TO220, 5.08mm pitch
  PN 5050/14 158 3 1.30 16   Tool to form the central lead of TO220, 3mm pitch
  PN 5050/15 158 3 1.30 16   Tool to form the central lead of TO220, 2.5mm pitch
  PN 5050/04 158 3 1.30 16   Tool to form the side leads of TO227 & TO220, 5.08mm pitch
  PN 5050/10 158 3 1.30 16   Tool to form the side leads of TO227 & TO220, 2.54mm pitch
  PN 5050/60 158 3 1.30 16   Forming tool for TO220 & TO247, side leads at 1.5mm and central lead at 3.5mm pitch
  PN 5050/16 158 3 1.30 16   Tool to form the side leads of TO227 & TO220, 3.81mm pitch
  PN 5050/19 158 3 1.30 16   Tool to form 5 leads of TO220, 1-3-5 leads at 4mm, 2-4 leads at 1.5mm
  PN 5050/38 158 3 1.30 16   Tool to form TO220  with 5 leads; leads 1-3-5 at 3mm pitch
  PN 5050/54 158 3 1.30 16   Tool to form TO220  with 5 leads; leads 1-3-5 at 2.54mm pitch
  PN 5050/36 158 3 1.30 16   Tool to form TO220  with 5 leads; leads 2-4 at 3mm pitch
  PN 5050/53 158 3 1.30 16   Tool to form TO220  with 5 leads; leads 2-4 at 2.54mm pitch
  PN 5050/6 155 3 1.30 16   Tool to form TO 220 at 90° leaving central lead 2.54mm longer than the side leads
  PN 5050/7 155 3 1.30 16   Tool to form TO 220 at 90° leaving central lead 2.54mm shorter than the side leads
  PN 5050/17 155 3 1.30 16   Tool to form TO 220 at 90° leaving central lead 3.81mm longer than the side leads
  PN 5050/21 155 3 1.30 16   Tool to form 5 lead TO 220 at 90° leaving leads 1-3-5   2.54mm shorter than leads 2-4
  PN 5050/37 155 3 1.30 16   Tool to form 5 lead TO 220 at 90° leaving leads 2-4   2.54mm shorter than leads 1-3-5
  PN 5050/46 155 3 1.30 16   Tool to form 5 lead TO 220 at 90° leaving leads 2-4   3.81mm shorter than leads 1-3-5
  PN 5050/47 155 3 1.30 16   Tool to form 7 lead TO 220 at 90° leaving leads 2-4-6   2.54mm shorter than leads 1-3-5
  PN 5050/49 158 3 1.30 16   Tool to form central lead of TO 92 at 2.54mm pitch
  PN 5050/25 158 3 1.30 16   Tool to form central lead of TO 92 at 1.27mm pitch
PART NUMBER TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  PNI 5000 150 3 0.8 20   Cut and form tool for small ICs.
  PNI 5015 155 5 0.64 22   Tool to get a clean cut of the leads with adjustable length
PART NUMBER TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  TS 30 138 9 1.02 18   Cut and press hand tool
PART NUMBER TIP LENGTH
(mm)
CUTTING FORCE
(Kg)
WIRE DIAMETER
(Ø mm)
WIRE GAUGE
(awg)
TOOL DESCRIPTION
  TP 30 138 3 1.02 18   Cut and bend hand tool
  TP 5000/15 147 3 1.02 18   Cut a bend hand tool to fix component to the PCB
