HEKTOR 2
8932145

The Hektor 2 separates milled PCBs carefully
and fast. The off-cut material is removed smoothly and precisely. The matrix consists of
two parts. This ensures easy and cost saving change of the blades.
Compressed air is used for the separation process. The operating pressure can be set on the machine. When the foot switch is pressed, the off-cut is punched out. The cut-offs
are collected in the collecting box. When the gate is opened the waste material can be extracted.

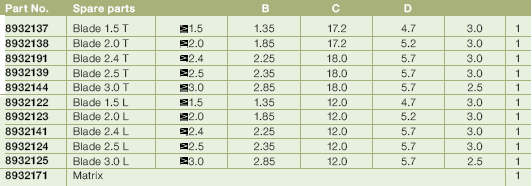

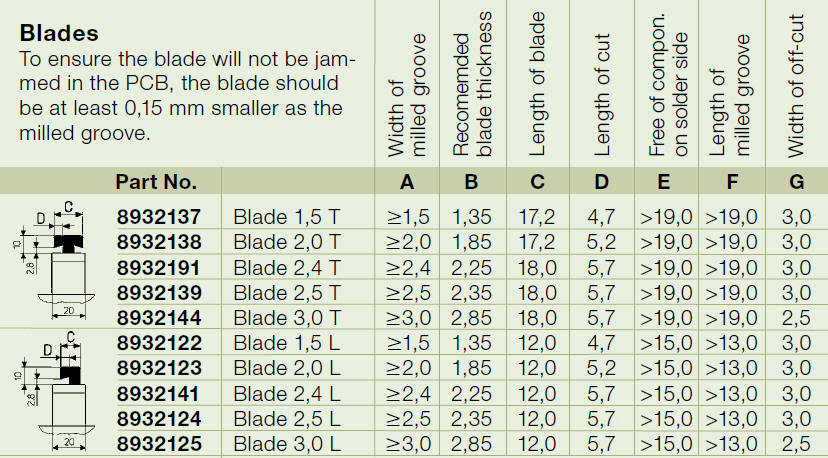

Two blade types are available for the Hektor 2:
T-Blade and L-Blade. With the T-blade off-cuts can be punched out Right and Left of the blades without turning the PCB. Each blade is available in five standard widths. To ensure
the blade will not be jammed in the PCB, the blade should be at least 0.15mm smaller than the milled grove. Special widths are available upon request.
